Nguồn gốc:
CN
Hàng hiệu:
HiLink or OEM
Chứng nhận:
CE FCC ROSH
Số mô hình:

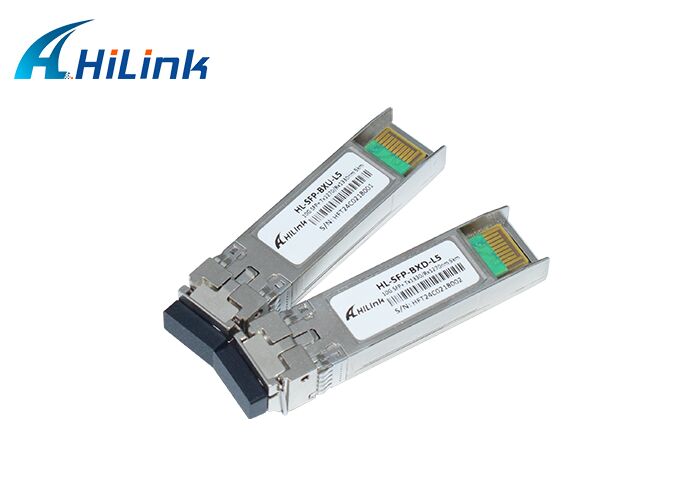

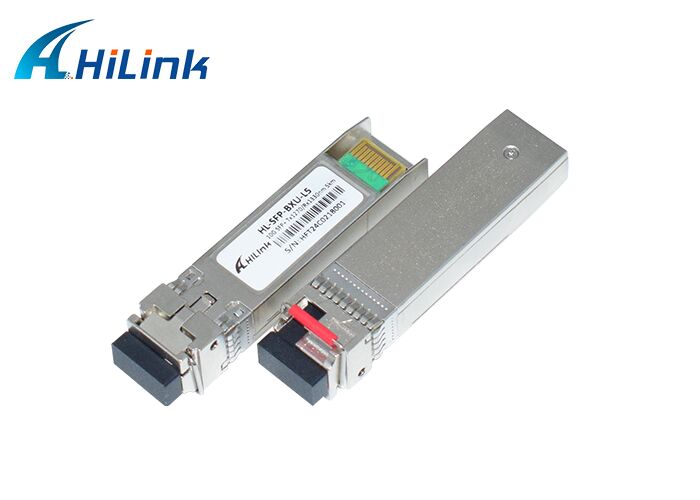

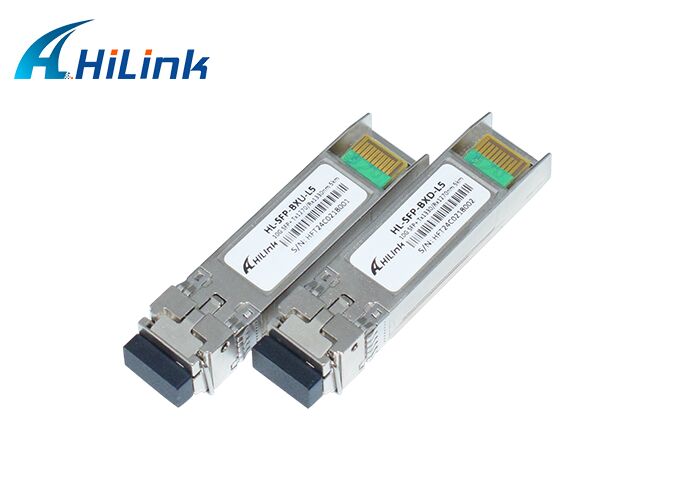

HL-SFP-BXU-L5/HL-SFP-BXD-L5
Description

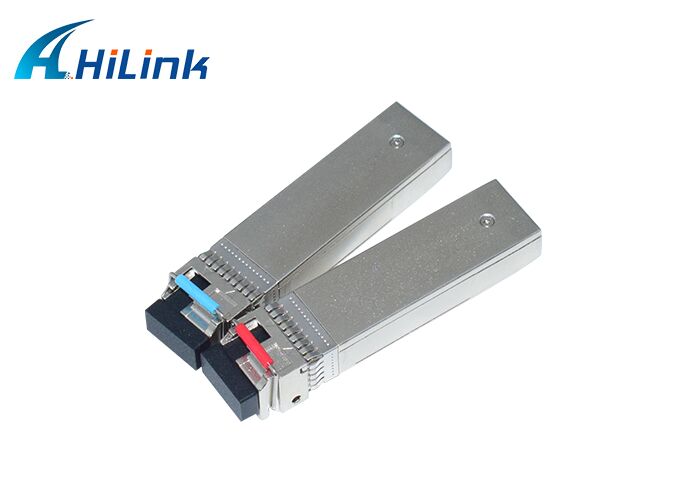

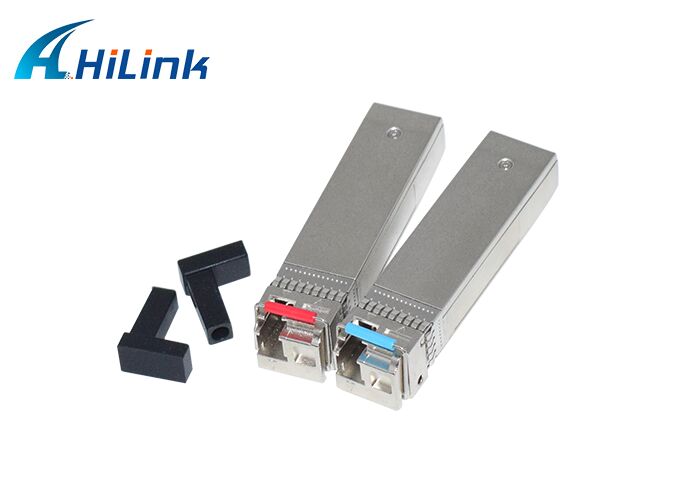

The HL-SFP-BXU-L5/HL-SFP-BXD-L5 Transceiver is intended for 5km reach service from 0.6Gb/s to 10.3125Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.
The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.
Product features
l Operating data rate up to 10.3125Gbps
l Up to 5km transmission distance
l High sensitivity PIN photodiode and TIA
l 12dB Power Budget at Least
l LC single connector
l Hot pluggable 20pin connector
l Low power consumption <1.2 W
l Single +3.3V±5% power supply
l Compliant with SFF-8472&SFF-8431
l Fully RoHS Compliant
l Compliant with IEEE802.3ae 10GBASE-LR/LW
l Operating temperature range:
Commercial: 0°C to +70°C
Industrial: -40°C to +85°C
Application
l 10GBASE-LR at 10.31Gbps
l 10GBASE-LW at 9.95Gbps
l Other Optical Links
