OSFP 400G LR4 1310nm 10km Transceiver Module

OSFP 400G LR4 1310nm 10km Transceiver Module

OSFP 400G LR4 transceiver module

1310nm 10km optical transceiver

400G LR4 fiber optic module

Nguồn gốc:

Quảng Đông, Trung Quốc

Hàng hiệu:

Hilink

Chứng nhận:

CE Rohs

Số mô hình:

OSFP-400G-LR4

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Tên sản phẩm:
OSFP-400G-LR4
Tốc độ dữ liệu:
400G
Với tới:
10 km
sử dụng:
Trung tâm dữ liệu
Đầu nối sợi:
DUPLEX LC
Nhiệt độ hoạt động:
0 đến 70
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 miếng
Giá bán
Send Inquiry know latest price
chi tiết đóng gói
Hộp nhựa+thùng carton
Thời gian giao hàng
5-8 Ngày làm việc
Điều khoản thanh toán
T/T, Western Union, Alipay, PayPal/WeChat/Đảm bảo thương mại
Khả năng cung cấp
2000 mảnh/tuần
Mô tả sản phẩm
OSFP 400G LR4 1310nm 10km Transceiver Module
Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s. The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.
Key Features
  • Supports 425Gbps
  • Single 3.3V Power Supply
  • Up to 10km over SMF with KP4 FEC supported at the Host side
  • Duplex LC connector
  • 8x53.125Gbps (PAM4) electrical interface
  • PIN and TIA array on the receiver side
  • Power dissipation < 8W
  • Case temperature range: 0°C to 70°C (commercial)
  • Safety Certification: TUV/UL/FDA*1
  • RoHS Compliant
Applications
  • 400G Ethernet
  • 400G-LR4 applications
  • Data center
  • InfiniBand
Transmitter Specifications
The transmitter path contains an 8x50Gbps 400GAUI-8 electrical input with Equalization (EQ) block, integrated electrical multiplexer, integrated driver, 4 externally modulated lasers, optical multiplexer and diagnostic monitors. The integrated electrical multiplexer and integrated driver converts 8 channels of 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) parallel CWDM optical signals. The transmitter complies with EN 60825 and CDRH Class 1 human eye safety compliance.
Receiver Specifications
The receiver path contains optical de-multiplexer, eight PIN photodiodes, trans-impedance amplifiers (TIA), integrated de-multiplexer and 8x50G 400GAUI-8 compliant electrical output blocks. The PIN-TIA and integrated de-multiplexer converts 4 channels of 100Gbps (PAM4) parallel optical signals to 8 channels of 50Gbps (PAM4) electrical output data.

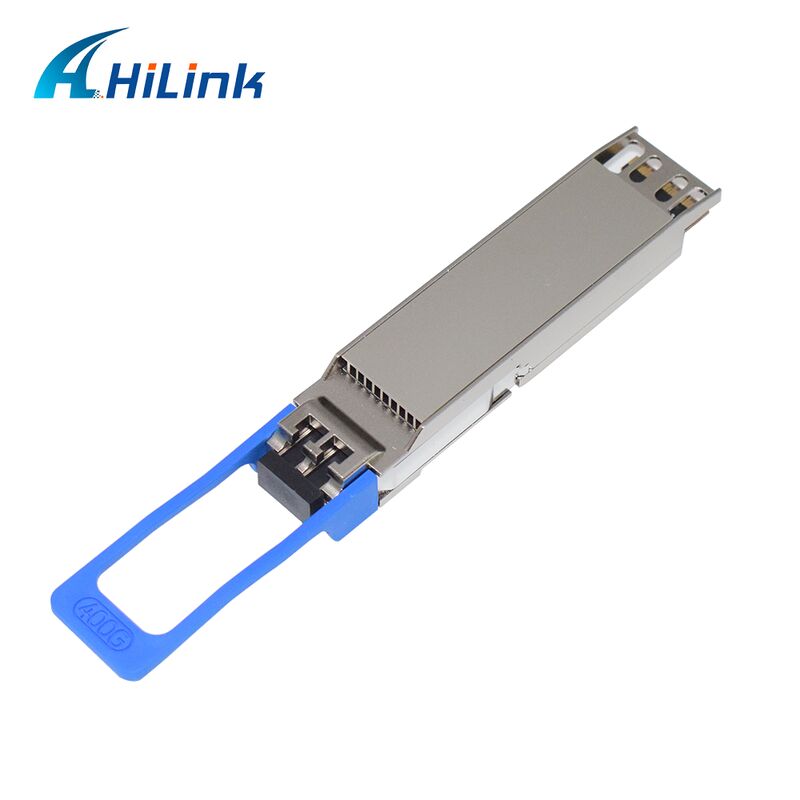

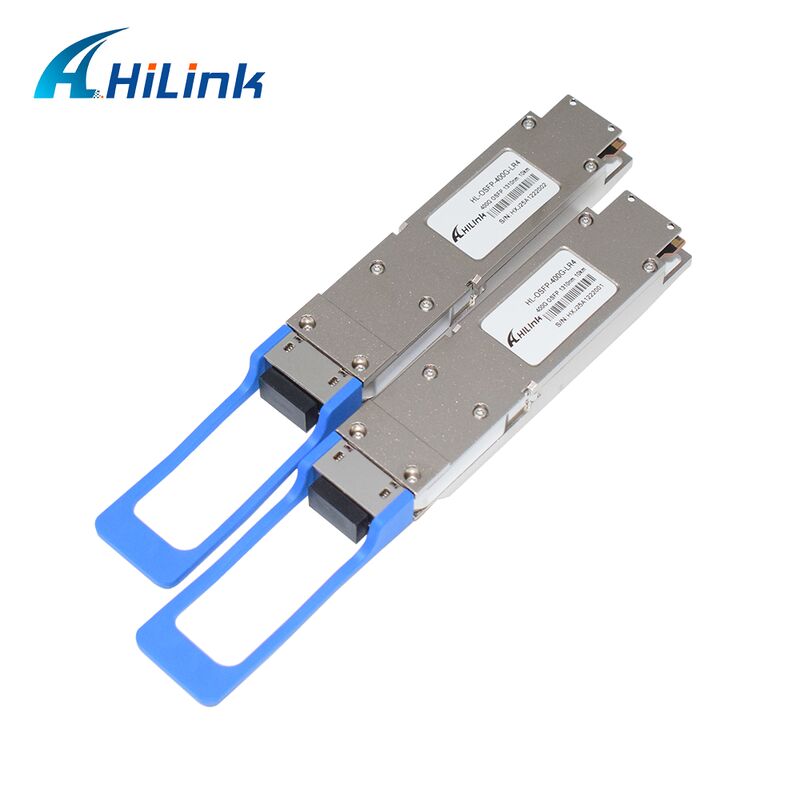

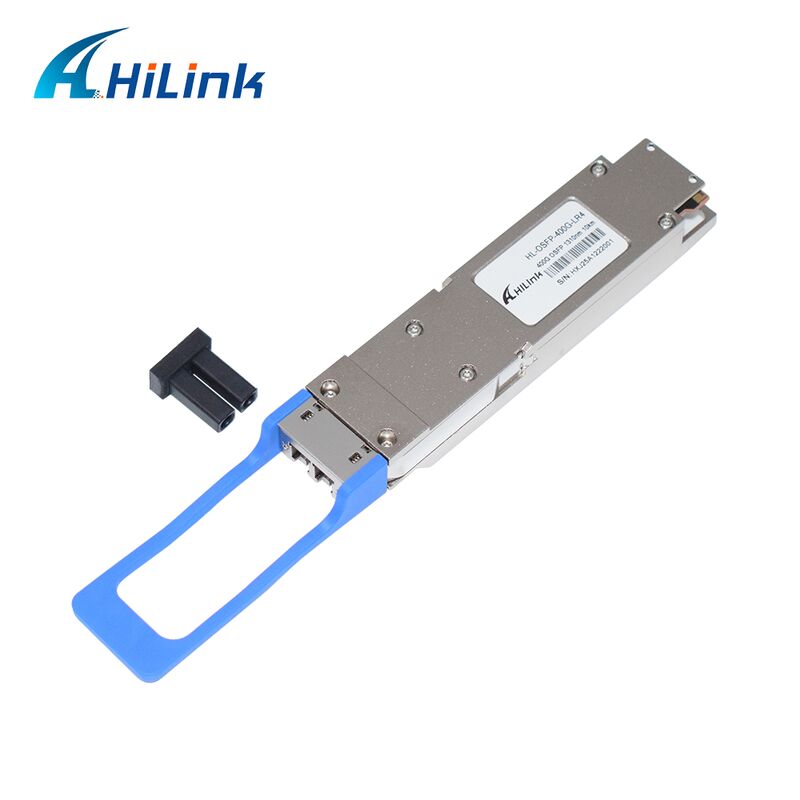

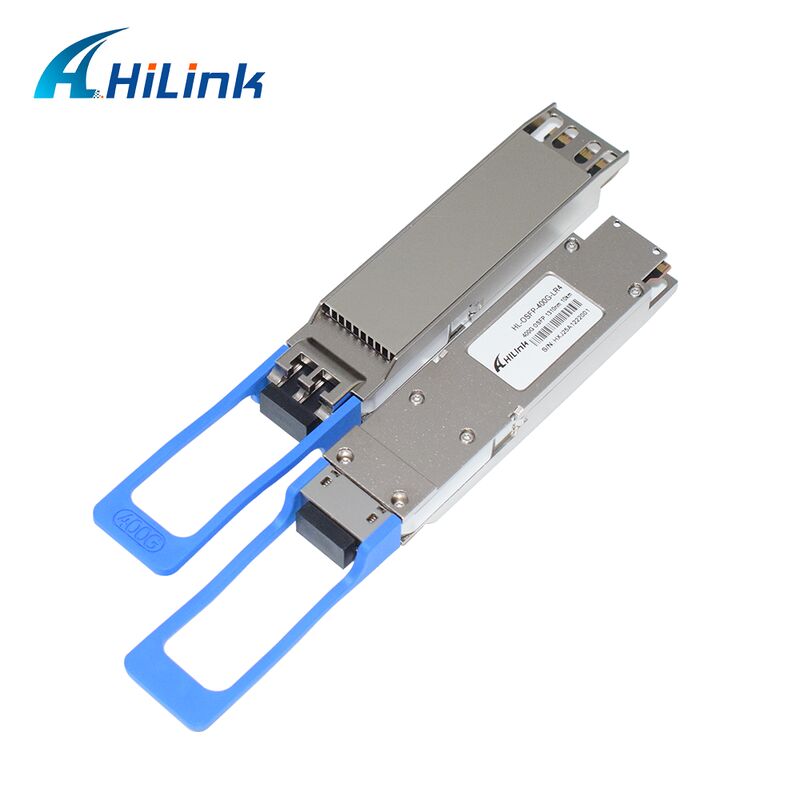

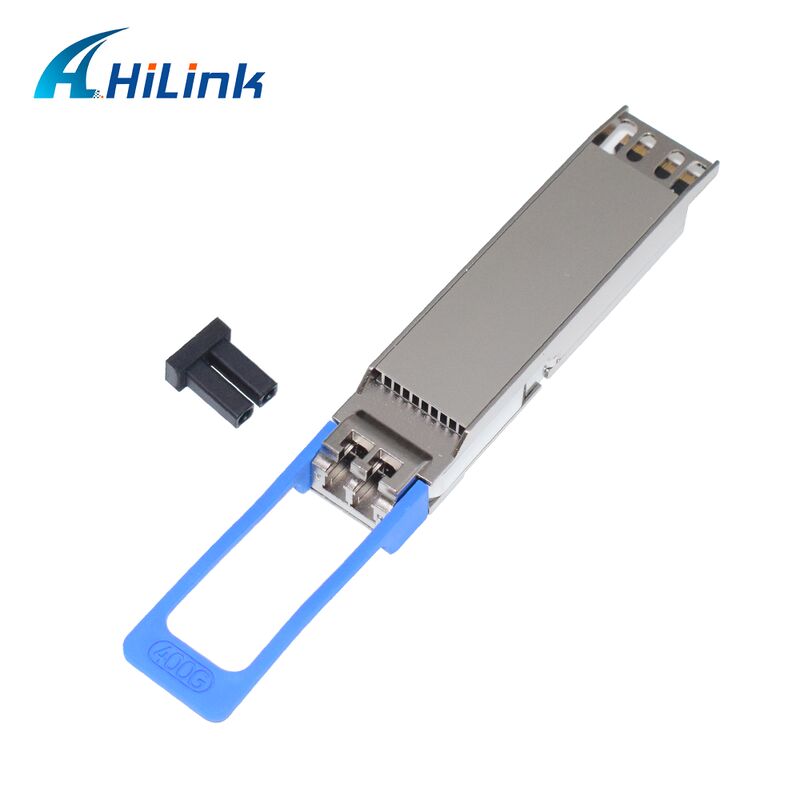

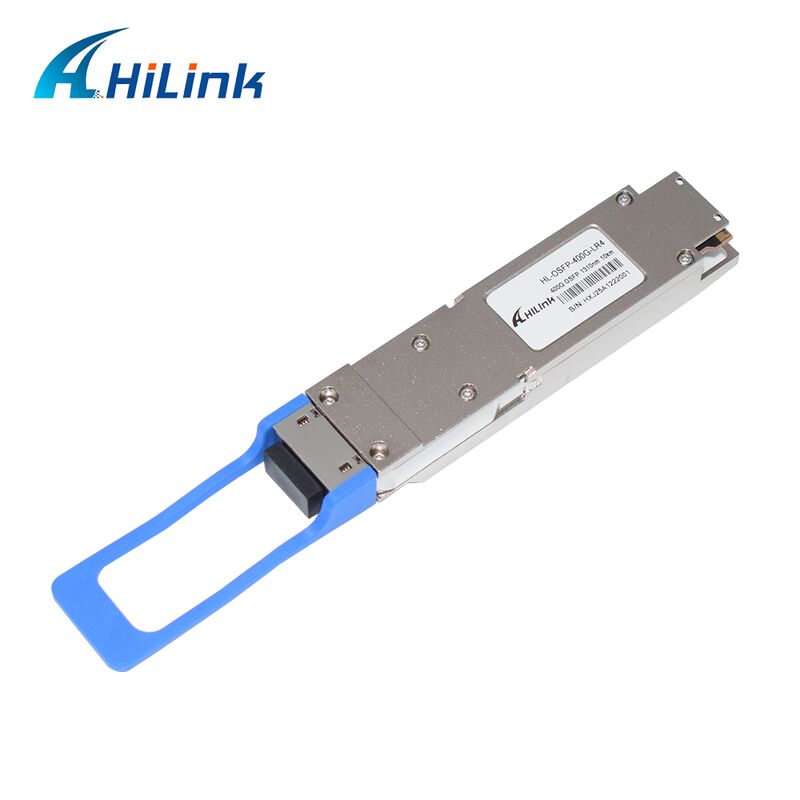

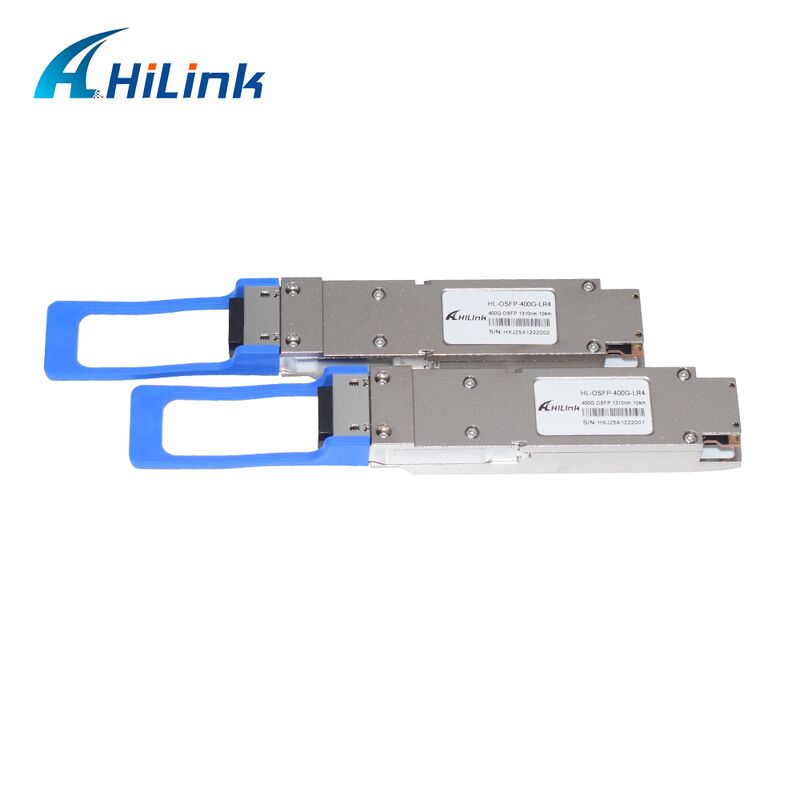

Product Images
OSFP 400G LR4 1310nm 10km Transceiver Module  0 OSFP 400G LR4 1310nm 10km Transceiver Module  1
Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
