Nguồn gốc:
Quảng Đông, Trung Quốc
Hàng hiệu:
HILINK
Chứng nhận:
CE FCC Rohs
Số mô hình:
HL- 200G - DD - LR8

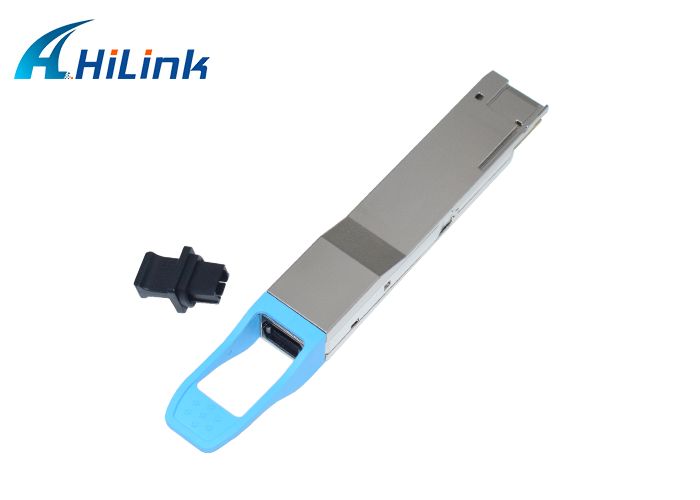

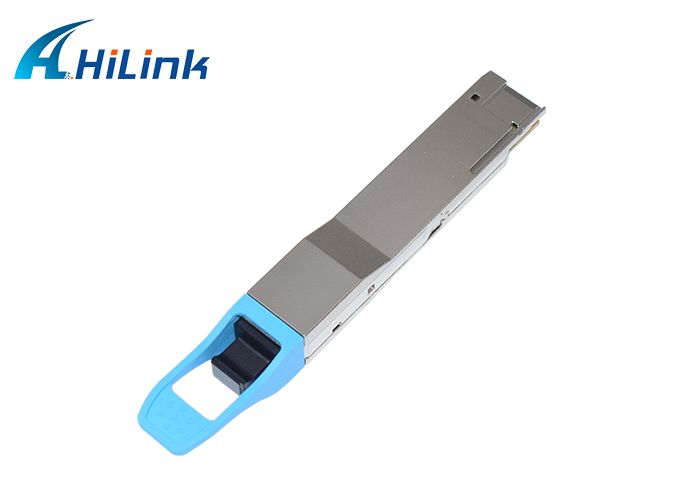

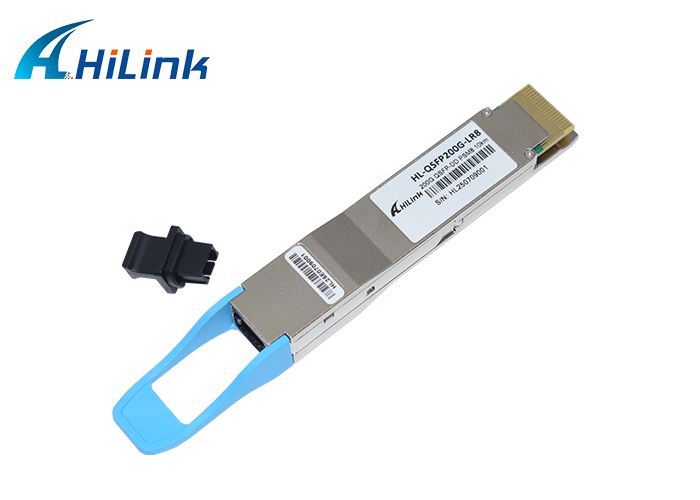

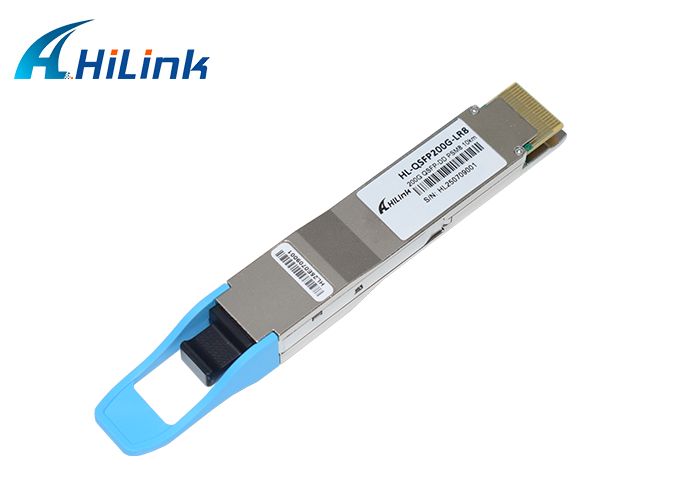

200G QSFP DD PSM8 10km Optical Transceiver(MPO16)
Features
l 8 channels full-duplex transceiver modules
l Supports 8×25Gb/s aggregate bit rates
l Supports 8×10Gb/s aggregate bit rates if required
l 8 channels 1310nm DFB
l 8 channels PIN photo detector array
l Internal CDR circuits on both receiver and transmitter channels
l Support CDR bypass
l Low power consumption <6.5W
l Hot Pluggable QSFP DD form factor
l Up to 10km reach for G.652 SMF
l Single male MPO16(APC 8-degree) connector receptacle
l Operating case temperature 0°C to +70°C
l 3.3V power supply voltage
l RoHS compliant (lead free)
Applications
l 2×100G Ethernet links
l Infiniband DDR/EDR
l Datacenter and Enterprise networking
Description
The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.
QSFP SERIES :
| QSFP | Nominal Wavelength (nm) | Cable Type | Core Size (Microns) | Modal Bandwidth (MHz*km)*3 | Cable Distance*1 | Power Consumption (W) | Pull Tab Color |
| QSFP-100G-SR4-S | 850 | MMF |
50.0 50.0 |
2000 (OM3) 4700 (OM4) |
70m 100m |
3.5 | Beige |
| QSFP-100G-LR4-S | 1295, 1300, 1304, 1309 | SMF | G.652 | - | 10km | 3.5 | Blue |
| QSFP-100G-CWDM4-S | 1271, 1291, 1311, 1331 | SMF | G.652 | - | 2km | 3.5 | Green |
| QSFP-100G-PSM4-S | 1310 | SMF | G.652 | - | 500m | 3.5 | Orange |
| QSFP-100G-SM-SR | 1271, 1291, 1311, 1331 | SMF | G.652 | - | 2km | 3.5 | Green |
