100G CXP MPO Optical Transceiver Module 100GBASE - SR10 CXP Module

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: HILINK
Chứng nhận: CE FCC Rohs
Model Number: CXP-MPO121-SR10C
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 cái
Packaging Details: retail box or customerized
Delivery Time: 2-6 days
Payment Terms: T/T, Western Union, Paypal
  • Thông tin chi tiết
  • Mô tả sản phẩm

Thông tin chi tiết

Tốc độ dữ liệu: 120G Port: MPO
Chiều dài: 150 triệu Chất xơ: MMF
Cáp: OM3 OM4 một phần số: CXP-MPO121-SR10C
Điểm nổi bật:

fiber transceiver module

,

optical fiber transceiver

Mô tả sản phẩm

100G CXP MPO Optical Transceiver Module 100GBASE - SR10 12 channel



Features

12-channel full-duplex transceiver module

Hot Pluggable CXP footprint

Maximum link length of 300m on OM3 or 400m on OM4 Multimode Fiber (MMF)

Multirate capability: 1.06Gb/s to 10.5Gb/s per channel

Unretimed CPPI electrical interface

Requires 3.3V power supply only

Low power dissipation: <4W

Reliable VCSEL array technology

Built-in digital diagnostic functions DDM

Commercial operating case temperature range: 0°C to 70°C

Single MPO connector receptacle

RoHS-6 Compliant (lead-free)



Applications



100GBASE-SR10 100G Ethernet

Multiple 1G/2G/4G/8G/10G Fibre Channel

Infiniband transmission at 12ch SDR, DDR and QDR

Switches, Routers

Data Centers

Other 120G Interconnect Requirement

Product Details





Form factor CXP Part number CXP-MPO121-SR10C
Product Description 120G, CXP, MMF Data Rate 12 x 10.3Gbps
Ave Tx Power(Each lane) -7.6 ~ +2.6dBm Ave Rx Sens/Each lane -9.5 ~+2.4dBm
Distance 300m(om3) 350m(om4) Wavelength 850nm
Connector MPO Transmitter VCSEL array
Receiver PIN array Power dissipation <4.5w
Temperature 0°C to 70°C DDM Yes

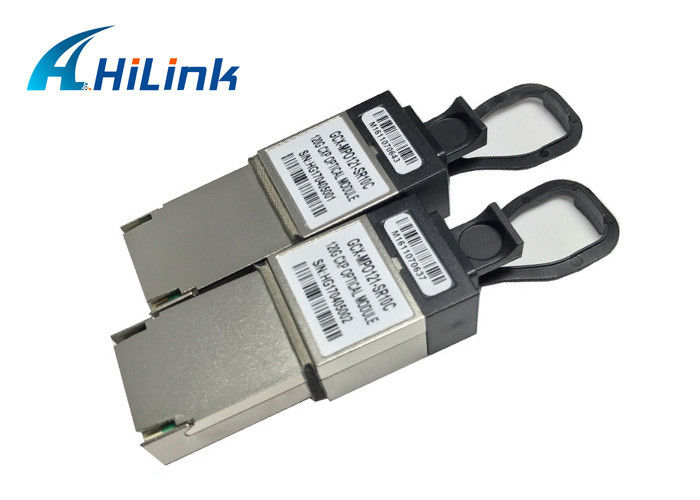

100G CXP MPO Optical Transceiver Module 100GBASE - SR10 CXP Module 0





Description



Hilink’s CXP-MPO121-SR10C CXP transceiver modules is a high performance, low power consumption, long reach interconnect solution supporting 100G Ethernet.

Infiniband QDR,DDR,SDR,1G/2G/4G/8G/10G fiber channel and PCIe.

It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface.

Hilink’s CXP transceiver modulesis an assembly of 12 full-duplexlanes, where each lane is capable of transmitting data at rates up to 10.5Gb/s, providing an aggregated rate of 120Gb/s.

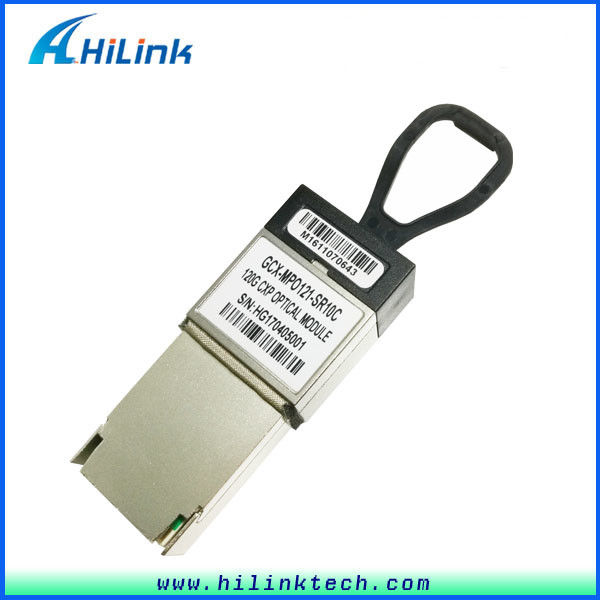

100G CXP MPO Optical Transceiver Module 100GBASE - SR10 CXP Module 1

Notes:

1. Transmitter consists of 12 lasers operating at a maximum rate of 10.5Gb/s each.

2. Even if TDP is <0.9dB, the OMA min must exceed this value.

3. RIN is scaled by 10*log (10/4) to maintain SNR outside of transmitter.

4. The Receiver consists of 12 photodetectors operating at a maximum rate of 10.5Gb/s each.
