Thông tin chi tiết sản phẩm:
|
|
| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | HILINK |
| Chứng nhận: | CE FCC Rohs |
| Model Number: | HLXX |
|
Thanh toán:
|
|
| Số lượng đặt hàng tối thiểu: | 1 cái |
| Giá bán: | Negotiable |
|
Thông tin chi tiết |
|||
| Connector: | LC | Wavelength: | 1270nm~1610nm |
|---|---|---|---|
| Application: | WDM optical solution | Provider: | hilinktech |
| Technical support: | Yes | Product: | 3G VIDEO SFP |
| Điểm nổi bật: | fiber optic wdm,optical wdm |
||
Mô tả sản phẩm

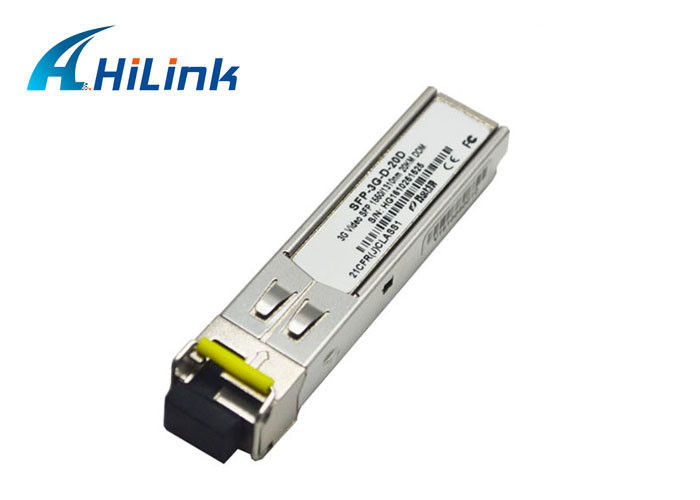

3G Video Fiber Optic SFP LC WDM Solution 1270nm - 1610nm Wavelength
Features
Full digital non-compression broadcast level transmission;
point -to-point, cascade connected, distributed network connection supported, and with steady SNR;
level 3 lightning protection;
free of cross interference resulted from FM/PM/AM optical transmitter and receiver;
all high-resolution video signal supported;
Lossless video regeneration & relaying supported;
super optic dynamic range and free of adjustment prior to use;
surface coating technique;
fiber optic WDM/CWDM/DWDM technique;
1000 M optical fiber transmission, easy for update;
industry level ultra-broad temperature range (-40℃~+85℃),
adaptable to various environments;
on-power hot plug;
wall-mounted or 2U rack-mounted;
user's customization and OEM supported.
Technical Parameters

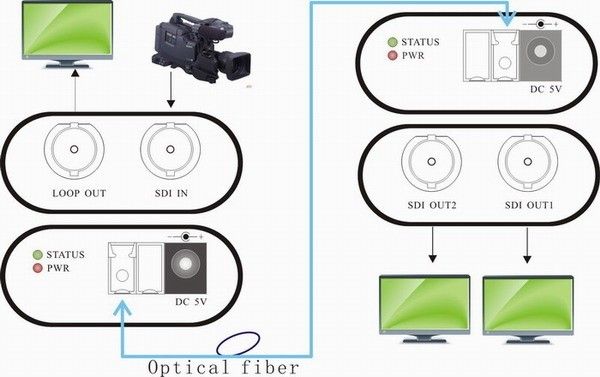

| SDI High-Definition Digital Video Optical Transmitter and Receiver | ||
| Technical Parameters | ||
| Number of Video Channels | 1 channel | |
| Video Bandwidth | MAX 2.97GHz |
|
| Supported Video Formats |
SD-SDI, HD-SDI, 3G-SDI |
|
| Video Input/ Output Impedances | 75Ω (non-balance), BNC | |
| Video SNR | ≥67dB (weighted) 65 | |
| Differential Gain | <1% (typical) | |
| Differential Phase | <0.6° (typical)"1" | |
| Video Interface | BNC | |
| Optical Fiber Indexes |
Optical Port: SC (optional) Single-Mode:0~100KM Wavelength: 1310/1550nm |
|
| Expanded Options | ||
|
Data Channel
|
RS485 (reverse) /422/RS232 and NRA/RZI/Manchester supported Physical Interfaces: Standard industrial terminal Operating Mode: Simplex Transfer Rate 0 to 400Kbps Error Rate < 10-9 |
|
